Hawkvine HV-VC038 IP SDI Integrated Video Conference Camera output 1080p images simultaneously

Name: Hawkvine HVVC038 IP SDI Integrated Video Conference Camera output 1080p images simultaneously
Brand: HAWKVINE
Price: 100 USD

Brand Name : HAWKVINE

Model Number : HV-VC038

Certification : TS16949

Place of Origin : CHINA

MOQ : 10PCS

Price : 100-10000

Payment Terms : L/C, T/T

Supply Ability : 1000 Per month

Delivery Time : 15days

Packaging Details : Carton Packing

Optical Zoom : 3x,5x

Video Compression : H.264

Net Weight : 0.42KG

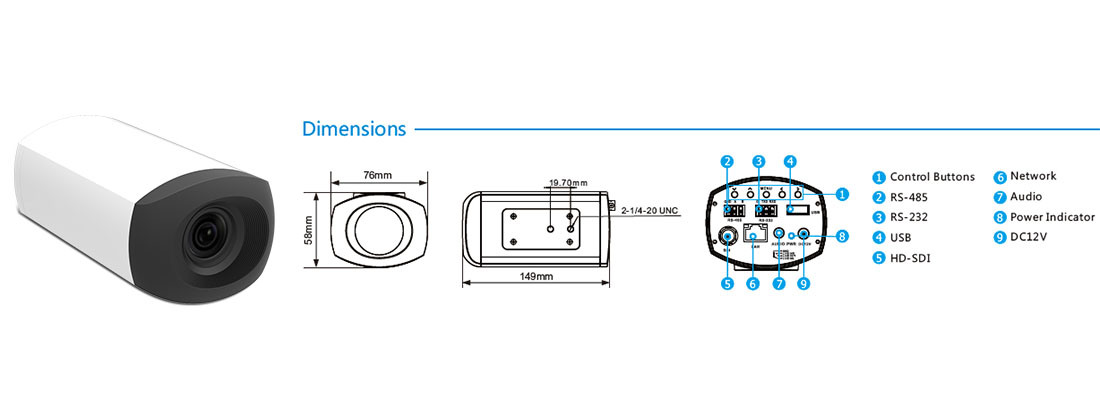

Dimension : 149mm x 76mm x 58mm

Contact Now

Hawkvine HV-VC038 IP SDI Integrated Video Conference Camera output 1080p images simultaneously.

HV-VC038 Features:

1/3″ CMOS, 2.14MP;
Up to 5x optical zoom;
Support various control modes, including network, remote
control, RS232& RS485 control, and local button control;
Support SDI and RJ45 output interface, can output 1080p images simultaneously;
Support H.264 video compression, support up to 1080p30, and with low network latency;
Support 2 audio inputs, with AAC audio compression;
Compatible with HTTP, RTSP, RTMP, ONVIF protocols.

Hawkvine No.	HV-VC038A	HV-VC038B
Camera
Image Sensor	1/3″ CMOS, 2.14MP
Focal	2.8mm – 14mm	7mm – 22mm
Effective Pixel	1920 x 1080
Optical Zoom	5X	3X
Field of View	98° – 40°	33° – 15°
Focus	Auto / Manual
Min. Illumination	0.5Lux
White Balance	Auto
Exposure	Auto
Control Buttons	5
Video Output	1080P30 / 1080P25 / 720P60 / 720P50
Network
Max. Image Size	1920 x 1080@30fps
Video Compression	H.264
Audio Compression	AAC
Protocol	HTHTTP / RTSP / RTMP / ONVIF
Simultaneous Users	Up to 10 users
Dual Stream	Support
Ethernet Interface	100M(RJ45)
Interface
Video Interface	3G-SDI
Audio Interface	3.5mm Audio Interface( 2 Line in / 1 line out)
Comm. Interface	RS-232,RS-485
General
Control Protocol	VISCA
Power	DC 9V~12V
Power Consumption	<5W
Working Temp	-40°C~+60°C
Dimension	149mm x 76mm x 58mm
Weight	0.42KG
Body Colour	White
